Aluminum Electronics Enclosures

Custom aluminum electronics enclosures for communication equipment, industrial controllers, power electronics, instrumentation, embedded systems, and other electronic applications.
Enclosures are manufactured according to customer drawings using aluminum extrusion, CNC machining, surface finishing, and assembly.

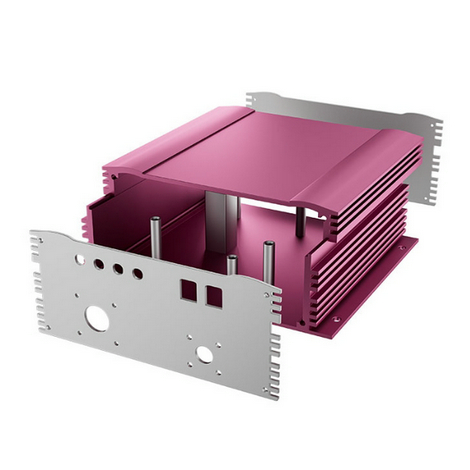

Typical enclosure features include cooling fins, PCB guide slots, connector openings, removable end plates, and custom mounting structures.

Typical Aluminum Electronics Enclosure Manufacturing Options

Each enclosure is reviewed from the required internal layout, interface locations, thermal requirements, finish and production quantity. Final dimensions and tolerances are confirmed from the drawing.

Item	Typical Options
Alloy	6063-T5 for most extruded enclosure profiles; 6061 evaluated for specific strength or machining requirements.
Enclosure Body	Open or closed extrusion profiles, supplied with removable end plates where required.
Profile Features	PCB guide slots, internal ribs, screw channels, mounting flanges, cooling fins and internal cavities.
Cross-Section and Length	Custom profile sections and cut lengths developed around the internal component layout.
CNC Machining	Connector openings, display windows, holes, threads, slots, mounting features and machined contact surfaces.

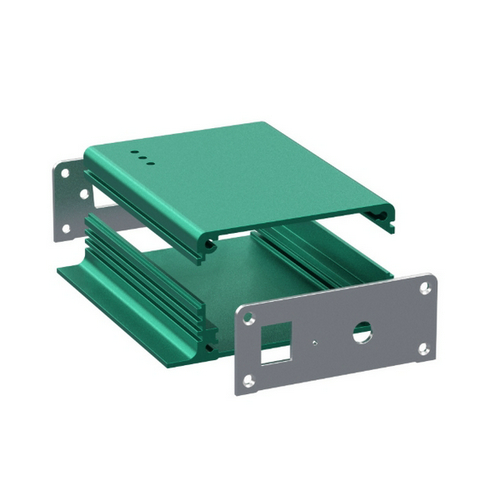

End Plates	Aluminum, sheet metal or machined end plates prepared for the required interfaces and assembly method.
Surface Finish	Mill finish, clear or black anodizing, hard anodizing, sandblasting, brushing, powder coating or painting.
Assembly	Screws, inserts, gaskets, brackets, end plates and selected hardware supplied or assembled as required.
Inspection	Profile dimensions, cut length, interface openings, threads, finish and assembly fit checked to drawing requirements.
Samples and Production	Samples available for fit and appearance confirmation before serial production.
Packaging	Protective separation and export packaging selected according to finish, size and transport method.

Why Extrusion Is Commonly Used for Electronics Enclosures

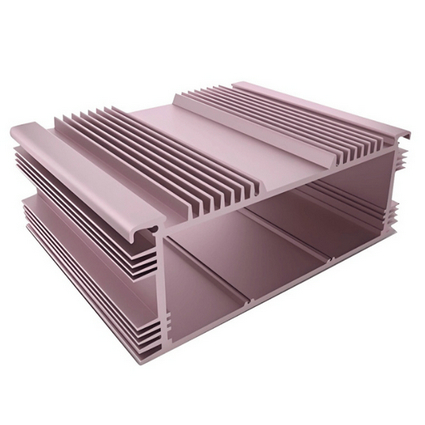

Aluminum extrusion is widely used for electronics enclosures with a constant cross section. Cooling fins, PCB guide slots, mounting features, and internal cavities can be incorporated directly into the extrusion profile, reducing the number of separate components.
CNC machining is used to produce connector openings, threaded holes, display windows, mounting holes, and other customer-specific features. Surface finishing and final assembly are completed according to product specifications.
Extrusion provides an efficient manufacturing solution for electronics enclosures that require a constant cross section, integrated structural features, and cost-effective production.

Typical Structural Features

Aluminum electronics enclosures typically integrate multiple structural features directly into the enclosure body. Depending on the application, cooling fins, PCB guide slots, mounting features, connector interfaces, and internal cavities can be incorporated into a single extrusion profile.

Internal Layout and Interface Design

PCB dimensions, component height, connector locations, and mounting requirements determine the internal enclosure layout.
The internal space must accommodate pcbs, heatsinks, power devices, transformers, capacitors, wiring, and assembly clearances. Component height affects enclosure depth, while connector locations influence PCB positioning and enclosure dimensions.
PCB installation features include mounting bosses, threaded holes, guide slots, support ribs, and other structural details incorporated into the enclosure. Their locations are determined according to the PCB layout and assembly requirements.

Connector openings are determined by the interface configuration of the electronic assembly.

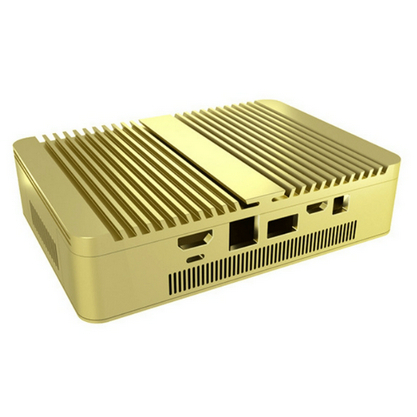

Connector openings are configured according to connector dimensions, PCB layout, cable routing, and installation requirements. Interface types may include communication ports, power inputs, terminal blocks, switches, antennas, indicators, and display windows.
Connector layout, PCB position, enclosure dimensions, and mounting features should be considered together during the design stage to simplify assembly and reduce later design changes.

Design consideration	Engineering purpose
Connector dimensions	Ensure correct opening size and fit
PCB layout	Align connector openings with PCB interfaces
Cable routing	Reserve sufficient space for cable routing
Fastener clearance	Allow assembly and maintenance access
Machining tolerance	Maintain dimensional accuracy

Thermal and Installation Design

Heat is generated by processors, communication modules, power devices, power supplies, and other electronic components installed within the enclosure.
Component location, PCB arrangement, enclosure dimensions, and cooling structures should be considered together during enclosure design. Heat-generating components are typically positioned close to enclosure walls, mounting surfaces, or integrated cooling structures.
Extruded aluminum enclosures can integrate external cooling fins, increased surface area, thicker mounting sections, machined contact surfaces to improve heat transfer.

Thermal Design Factor	Design Consideration
Component location	Position heat sources close to the enclosure wall
Cooling fin geometry	Increase surface area for heat dissipation
Mounting surface	Provide flat contact surfaces for thermal transfer
Airflow condition	Reserve airflow paths around cooling fins
Enclosure material	Select alloys with suitable thermal conductivity

Electronic enclosures will be installed on walls, panels, equipment frames, control cabinets, or portable systems, depending on the application.

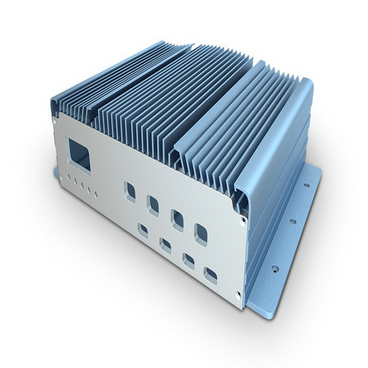

External installation features include mounting flanges, slotted mounting holes, wall-mount brackets, DIN rail attachments, and carrying handles.
Internal mounting space must also accommodate PCBs, wiring, cooling components, and assembly clearances. External installation and internal component layout should therefore be considered together during enclosure development.

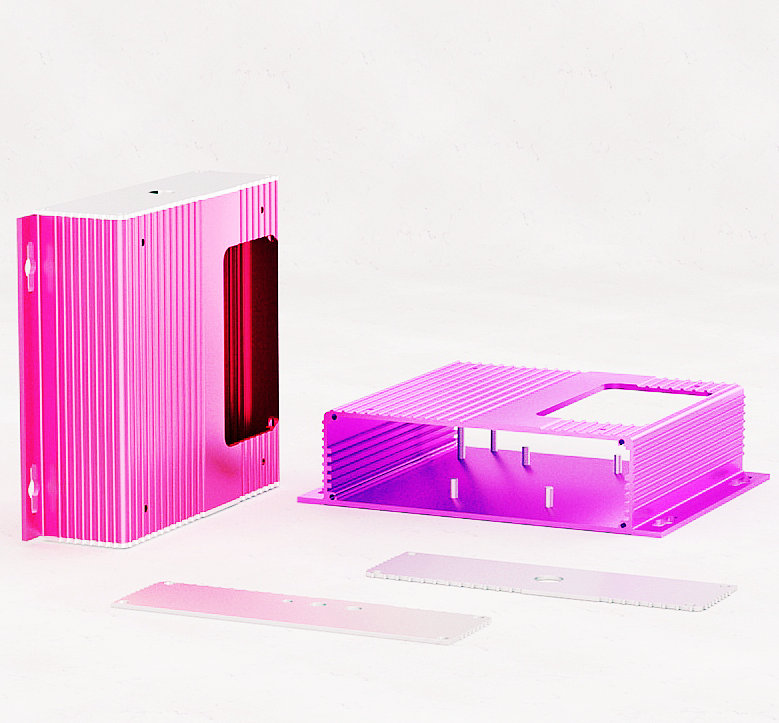

External Installation Features

Internal Installation and Assembly Examples

From Extrusion to Finished Electronics Enclosure

The extrusion profile forms the primary enclosure structure and incorporates cooling fins, guide slots, mounting features, and other structural details. CNC machining is used to create connector openings, threaded holes, display windows, mounting features, and other enclosure-specific features.
Surface finishing operations may include anodizing, powder coating, painting, sand blasting, and other finishing processes. Assembly operations may include end plates, fastening hardware, seals, brackets, and internal electronic components.

Quality Control, Packing and Delivery

Finished aluminum electronics enclosures are checked according to the drawing, approved sample and final assembly requirements before shipment.

What to Send for an Enclosure Review

A complete drawing is preferred. A PCB layout, enclosure sketch, product photo or basic dimensions can also be used for an initial review.

• Internal PCB and component dimensions
• Overall enclosure size and required length
• Connector, display and cable-entry locations
• Cooling, mounting and installation requirements
• Required machining, surface finish and assembly

Engineering Questions for Aluminum Electronics Enclosures

How should PCB dimensions and component height be considered in an extruded enclosure design?

We need the PCB size, tallest components, connector locations and cable space first. The enclosure is then sized around the actual assembly, not only the board outline.

Which enclosure features can be integrated into the extrusion profile, and which must be CNC machined?

Features that run along the full enclosure length can usually be built into the profile, such as PCB guides, fins, screw channels and ribs. Connector openings, display windows, holes and threads are normally machined afterward.

How are connector openings aligned with the PCB and final interface layout?

We check the PCB connector positions together with the end-panel drawing. Connector size, cable direction, screw positions and assembly access all need to fit before CNC machining starts.

How do internal guide slots, screw bosses and support ribs affect extrusion feasibility?

They can be integrated into the profile, but very deep slots, thin walls or uneven sections may make extrusion less stable. We review the section before tooling and adjust details if needed.

What should be considered when an extruded enclosure requires a flat thermal contact surface?

If a device needs to sit flat against the enclosure, the contact face may need machining after extrusion. We confirm the required flatness, contact area and thermal-pad arrangement before making the profile.

How are long enclosure profiles controlled for straightness, twist and end-plate fit?

Long profiles are stretched and straightened after extrusion, then supported correctly during cutting and CNC machining. If end plates or covers need a close fit, we confirm the finished-part requirement in advance.

When is a custom extrusion die more suitable than CNC machining an enclosure from solid material?

A new die makes sense when the enclosure has one constant cross-section and repeated features along its length. For one-off parts or shapes that cannot be extruded, machining from solid material may be more practical.

How can cooling fins be integrated without compromising internal space or assembly features?

The fins, enclosure wall and internal component space are designed together. We need to leave enough room inside for the PCB and wiring while keeping a workable fin structure outside.

What should be confirmed before black anodizing an electronics enclosure with visible surfaces?

Black anodizing makes extrusion lines, machining marks and hanging points easier to see. Visible faces, masking areas and appearance expectations should be confirmed before production.

How are mounting flanges, end plates and external installation features reviewed before tooling?

We check how the enclosure will be mounted, where tools need access and how the end plates will fit. Flanges, holes, screws and connector positions should be confirmed together before the die is made.

Have a Drawing or Part Requirement?

Send your drawing or requirements for a review of tooling, CNC machining, surface finish and assembly options.
